Professional D1x2B 2X4 Mechanical Optical Switch MMF SMF Seam Seal Package

Name: Professional D1x2B 2X4 Mechanical Optical Switch MMF SMF Seam Seal Package
Brand: HILINK
Price: 1 USD

China Professional D1x2B 2X4 Mechanical Optical Switch MMF SMF Seam Seal Package wholesale

Brand Name : HILINK

Model Number : HL-SW-D1X2x

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs/week

Delivery Time : 1-4 working days

Packaging Details : Static bag, Plastic PVC Pack, Retail box

Price : Negotiable

Operating wavelength : 850nm &1260nm-1650nm

Channel : D1x2

Operating temperature : -20~70℃

Warranty : 3 Years

Power MW : 500

Control type : Latching Or Non-latching

Contact Now

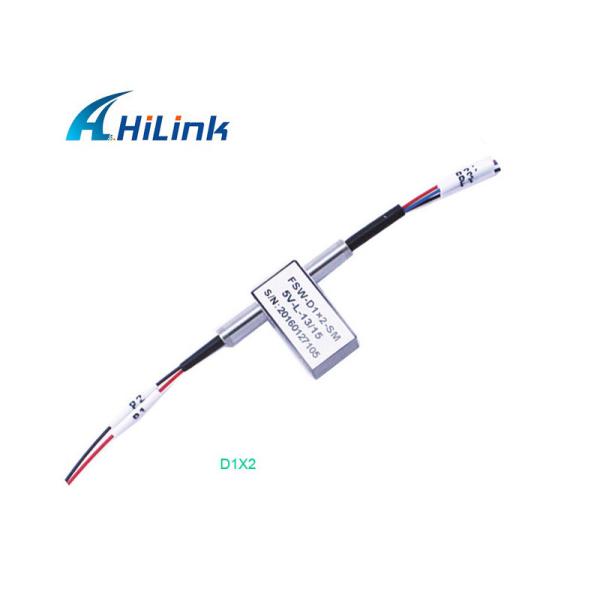

Hilink Dual 1x2B Mechanichal Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fibers.The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch

Dual 1x2 (D1x2) Mechanichal Optical Switch support all wavelength at Single mode 1260nm~1650nm or Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,

Features
Compact design, Miniature size
Short switching time
Bi-directional
Low optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range
Seam-seal package
Highly Stable & Reliable
Epoxy-free on Optical Path
Single mode or Multimode optional
Fail-Safe Latching and Non-latching

Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System

Specification Performance

Parameters	Unit	-FSW-D1×2B
Wavelength Range	nm	670~980	1260~1650
Operating Wavelength	nm	670/785/850/980	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2	Typ:0.6 Max:1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥30 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Weight	g	15
Dimension	mm	customization is available.

Pins

Type	State	Optical Route	Electric Drive				Status Sensor
D1×2			Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	A	P1-P2	--	--	GND	V+	Close	Open	Open	Close
		P1’-P2’
	B	P1-P3	V+	GND	--	--	Open	Close	Close	Open
		P1’-P3’
Non-latching	A	P1-P2	--	--	--	--	Close	Open	Open	Close
		P1’-P2’
	B	P1-P3	V+	--	--	GND	Open	Close	Close	Open
		P1’-P3’

Ordering Information

D1×2B Fiber Optical Switch - Ordering Information: FSW-D1×2B-A-B-C-D-E-F-G
A	B	C	D	E	F	G
Fiber Type	Operating Voltage	Switch Type	Test Wavelength	Tube Type	Fiber Length (Include connector)	Connector
SM: SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X: Others	3: 3V 5: 5V	L: Latching N: Non-latching	850:850nm 1310:1310nm 1550:1550nm 1310/1550: 1310/1550nm X:Others	25:250um 90:900um X: Others	05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X:Others	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others
